Digital 2-in-1 pH ORP Controller with Replaceable BNC Electrodes and 110V/220V Power Relay Output for Aquarium Hydroponics Pool Spa

Certification
China SHEN ZHEN YIERYI Technology Co., Ltd certification
China SHEN ZHEN YIERYI Technology Co., Ltd certification
I'm Online Chat Now

Digital 2-in-1 pH ORP Controller with Replaceable BNC Electrodes and 110V/220V Power Relay Output for Aquarium Hydroponics Pool Spa

Digital 2-in-1 pH ORP Controller with Replaceable BNC Electrodes and 110V/220V Power Relay Output for Aquarium Hydroponics Pool Spa
Digital 2-in-1 pH ORP Controller with Replaceable BNC Electrodes and 110V/220V Power Relay Output for Aquarium Hydroponics Pool Spa Digital 2-in-1 pH ORP Controller with Replaceable BNC Electrodes and 110V/220V Power Relay Output for Aquarium Hydroponics Pool Spa Digital 2-in-1 pH ORP Controller with Replaceable BNC Electrodes and 110V/220V Power Relay Output for Aquarium Hydroponics Pool Spa Digital 2-in-1 pH ORP Controller with Replaceable BNC Electrodes and 110V/220V Power Relay Output for Aquarium Hydroponics Pool Spa

Large Image :  Digital 2-in-1 pH ORP Controller with Replaceable BNC Electrodes and 110V/220V Power Relay Output for Aquarium Hydroponics Pool Spa

Product Details:
Place of Origin: Guangdong, China
Brand Name: YIERYI
Model Number: PH-803
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: $58.16-63.01

Digital 2-in-1 pH ORP Controller with Replaceable BNC Electrodes and 110V/220V Power Relay Output for Aquarium Hydroponics Pool Spa

Description
PH Range: 0.00 ~ 14.00pH ORP Range: -1999 ~ 1999mV
PH Accuracy: ±0.1%+0.02PH ORP Accuracy: ±5mV
PH Resolution: 0.01pH ORP Resolution: 1mV
Set PH Range: 3.50 ~ 10.50pH Set ORP Range: -500 ~ 500mV
Relay Contact: 5A For AC 110V Or 220V Operation Temperature: 0 To 50°C (32 To 122°F)
Ambient Humidity: ≤90% RH Power Requirement: AC110V ±10% 60Hz / AC220V ±10% 50Hz
Power Consumption: 2 Watts Voltage: 110V Or 220V
Electrode Length: 300cm
Highlight:

2-in-1 pH ORP Controller

,

Replaceable BNC Electrodes Controller

,

110V/220V Power Relay Controller

Digital 2-in-1 pH ORP Redox Controller with Output Power Relay Monitor

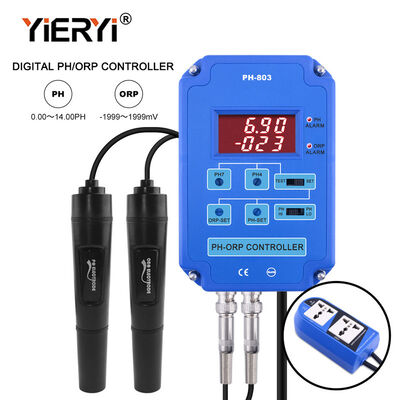

This advanced 2-in-1 pH & ORP controller and monitor simultaneously measures and displays both pH value and redox value (ORP) on its LCD screen. Designed for aquariums, hydroponics, plant systems, pools, and spas, it features two BNC electrodes (pH and redox) and two output power sockets for comprehensive water quality management.

Key Features
  • Simultaneous pH and ORP measurement and display
  • Two detachable BNC electrodes (pH and redox) with easy replacement
  • Two output power sockets for connecting control devices
  • Automatic control of connected devices based on set pH/ORP values
  • Wall mountable or hangable installation options
  • Available in 110V and 220V versions
  • Protection Dead Band feature for stable operation
Technical Specifications
Measurement RangepH: 0.00-14.00pH, ORP: -1999 to 1999mV
AccuracypH: ±0.1%+0.02pH, ORP: ±5mV
ResolutionpH: 0.01pH, ORP: 1mV
Set RangepH: 3.50-10.50pH, ORP: -500 to 500mV
Relay Contact5A for AC 110V or 220V
Operating Temperature0 to 50°C (32 to 122°F)
Ambient Humidity≤90% R.H.
Power RequirementAC110V±10% 60Hz / AC220V±10% 50Hz
Power Consumption2 Watts

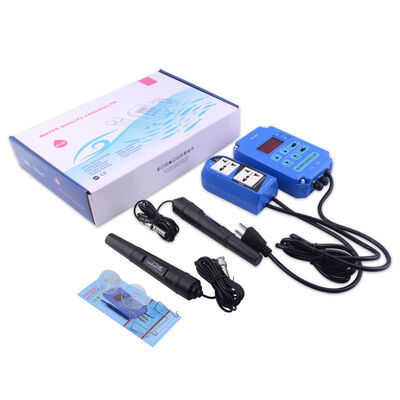

Package Contents
  • 1 x Dual Aquarium Controller for pH & ORP (110V or 220V)
  • 1 x Detachable 300cm pH electrode
  • 1 x Detachable 300cm ORP electrode
  • 2 x Rubber cable holder with suction cap
  • 1 x Metal wall hanger
  • 1 x Mini-screwdriver
  • 1 x English Operation Manual
Frequently Asked Questions
Why would you buy this item?
Instantly displays pH and ORP values simultaneously on its LCD screen. Equipped with 2 probes and 2 power sockets to control pH & ORP related devices. Features replaceable electrodes, fast response, easy calibration, and is approved by strict quality and safety standards.
Does it need calibration before use?
No, the unit is calibrated before shipping and ready to use.
Does it include battery?
No, the unit does not include a battery.
