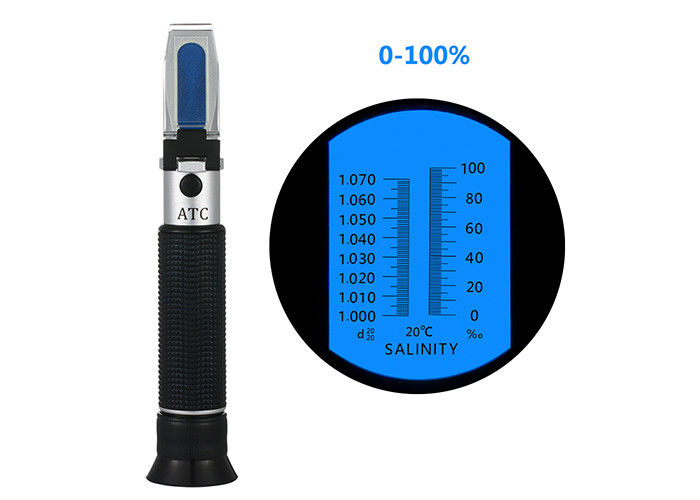

CE Seawater 20°C ATC Digital Salinity Refractometer

Yieryi brix 0-10% refractometer 1.000-1.070SG Salinity Seawater salinometer ATC 10 to 30C

Feature:

• With Built-in ATC compensation Range (Automatic Temperature Compensation) from 10°C to 30°C
• For field use, without having to re-calibrate after changes in ambient working temperature.
• Soft rubber eye piece for comfortable viewing
• Equipped with scale measurement which provides direct reading
• Accurate testing results guaranteed
• Extremely easy-to-use and calibrate
• Durable and built to last long
• Adjustable manual focusing
• Uses ambient light only which means battery or power source is not required.
• Cushioned with soft & comfortable non-slip rubber

• One SCALE: Brix scale: 0 to 10%Brix;
• Reference Temperature: 20°C
• ATC(Automatic Temperature Compensation) Compensation Range: 10°C~30°C (50°F~86°F)
• Manual calibration with mini-screw driver provided

Precautions & Maintenance

After using, please do not use the tap water to clean directly; Otherwise the water may go into the pipe of

optical systerm.

When using or maintaining, please handle with care and keep the surface of optical parts away from

scratch or demage.

The instrument can only be stored in the environment where is dry, free of dirt and corroisive gas;

otherwise the optical part will get moundly.

The prism that will be contacted with the object under measurement is an easily –consumed product,

which can not be recovered, pls understand.

Users are required to follow the methods said above; If the instruments is demaged since misconduct or

operation in error, we shall not bear the warranty responsibility.

The instrument will be packaged into the special box, with the accessories (i.e.:Using Instruction For Use;

Screwdriver, Suction pipe and lint)

Using method

1. Let the deviation prism point to the light, adjust the visual ring till the gage mark becomes clear.

2. Adjustment benchmark: Before using, pls keep the standard liquor (purified water), instrument and

liquid under measurement at the same temperature.Open the cover plate and apply 1~2 drops of

standard liquor onto the diviation prism, and then use hand to press the cover plate lightly to get a

dividing line. Turn the calibration screw to coincide the dividing line with the benchmark (0%). The one for

honey will be an exception.

Note: The instrument has been calibrated before delivering, you are allowed to use it directly.

3. Open the cover plate and use the soft rag to clear the surface of prism: apply 1~2 drops of liquid under

measurement onto the deviation prism and close the cover plate to press lightly; afterwards read the

relevant scale for dividing line; the reading will be the concentration value and destiny value of the liquid

under measurement.

4. After measuring, use the wet rag to clean the prism and cover plate; when it becomes dry, please store

the prism safely.
